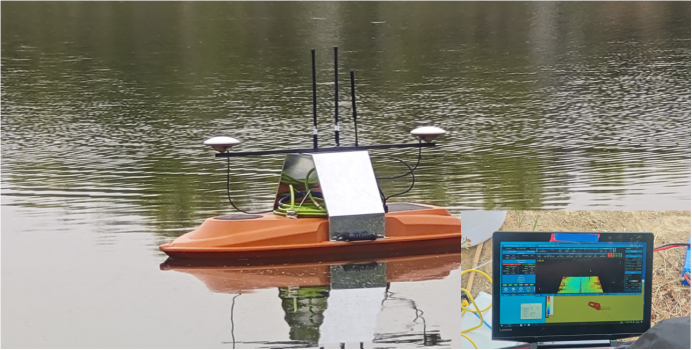

Unmanned Surface Vehicle MQ-Boat 1300

REMOTE CONTROL ELECTRIC BOAT

MQ-BOAT 1300

APPLICATION OF NAVIGATION ADCP MEASUREMENT

Key Feature

Reduce Measurement time
Personnel Do Not Need To Cross The River
Real Time Data Transmission Back To Shore Computer
Small Volume And Weight,Convenient Transportation And Carrying
Flexible Section Selection And Measurement
Adapt To Various Models Of ADCP
High Strength Hull,Strong And Collision Resistant
Impact Resistant Load Aluminum Alloy External Power
ADCP External Independent Installation

We use ADCP in streams,rivers,irrigation areas,channels,lakes,coastlines and other environments,and the remote measurement ship mqboat 1300 can effi- ciently complete the test work.When working in various harsh andcomplexenvironments,mq-boat 1300 can save measrement time,enure personal safety and meet measurement requirements to the greatest extent.Equipped with various models of ADCP,mq-boat 1300 providesa overall soluto for hydrological survey.

The hull is made of high-strength flexible PE material,which can hit h rock at full speed without breaking.The hull is formed atone time,and the whole is water- proof and sealed.The weight and size of the hull can be carried yone person and put into the trunkADCP is installed xternally,andthere is no need to open the hull during loading and unloading.The power unit adopts externally mounted underwater propeller,which has stron power and anicollision.Two groups of motors drive to ensure that the maximum ship speed of mq-boat 1300 can reach 4m/s.It can be easily manipulated under various surface velocity environments.

Technical Parameter

Data Parameters

Download

High - strength engineering materials hull

Hull dimensions: 1300x550x300 mm

Hull weight: 35 kg

Hull load: 40 kg

Hull material: PE (Polyethylene)

2 Tail Fins

1 Collapsible Bracket

1 ADCP plate

1 Toolkit

1 Traction accessories

Standard flow velocity: 0.1 - 3.5 m/s

Maximum flow velocity: 4.0 m/s

Hull power: 2×24V propellers

Remote control distance: 500 m

Data communication distance: 1.2 km

Endurance time: 2 - 3 hours

Power battery: 2×24V 20Ah LIPO/NIMH

Transducer: External installation
